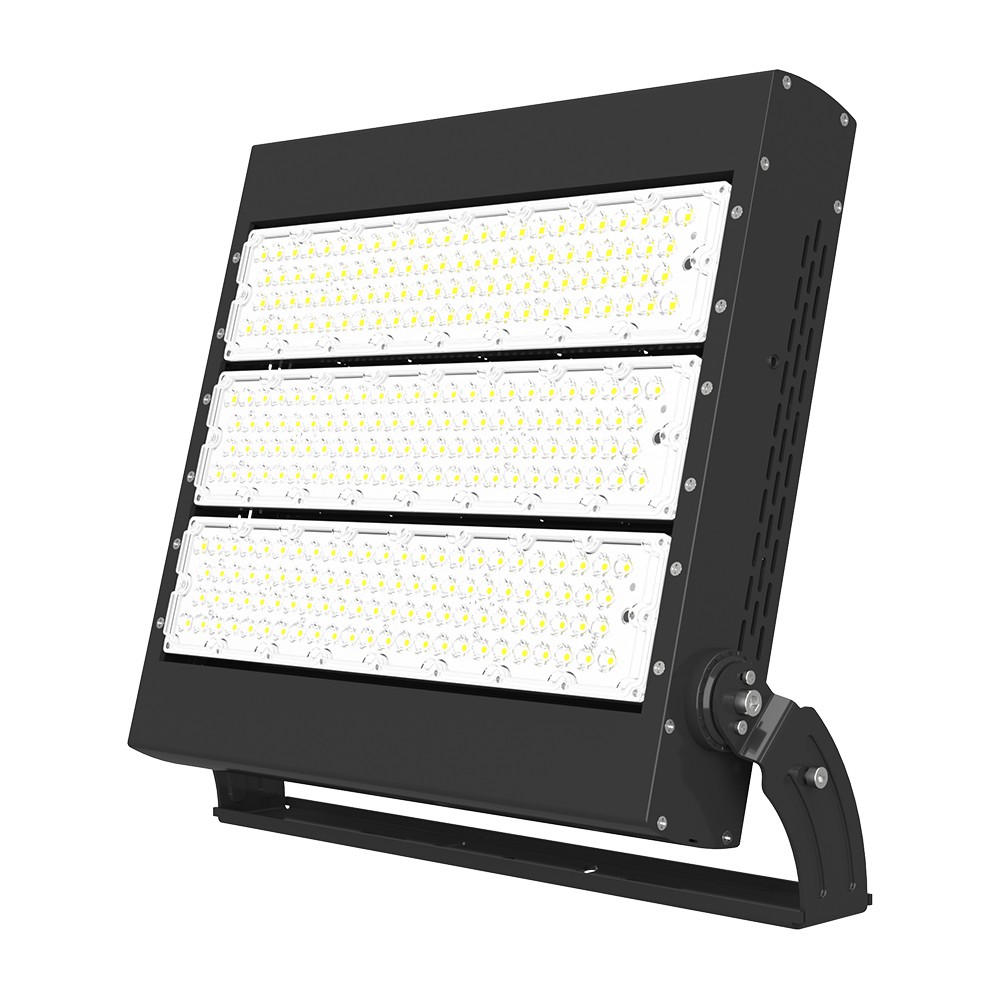

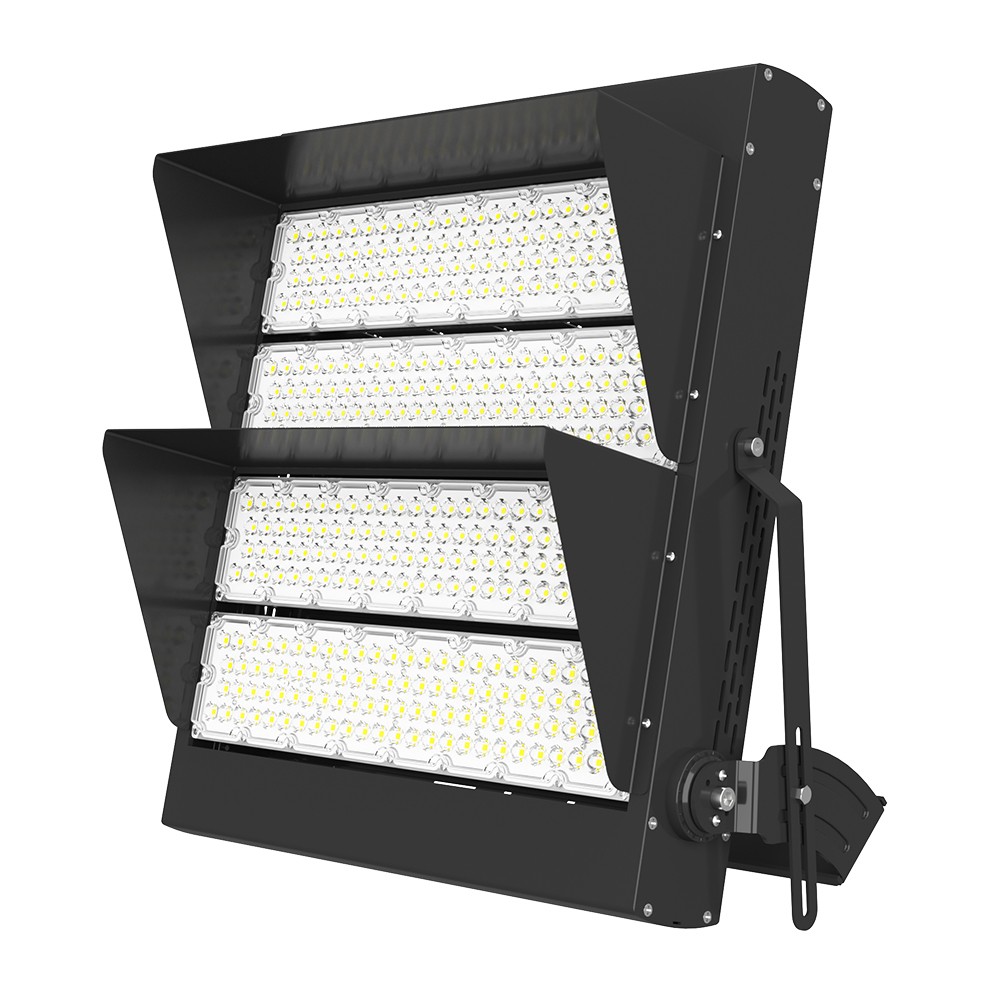

LED Stadium light

High performance output, low profile led flood light  utilizing Philips Lumileds LED and Meanwell driver, offering 100w~1200w for choice. High lumens can up to 150 lumen per watt,  Available in 20°/40°/60°/76°/90°/90°x135° multiple optical lenses for sports  venuse and large areas

Product Description

Product Feature:

* High reliable Meanwell driver and high bright Philips Luminleds LEDs;

* Multiple optical lenses are available to meet a variety of lighting needs.;

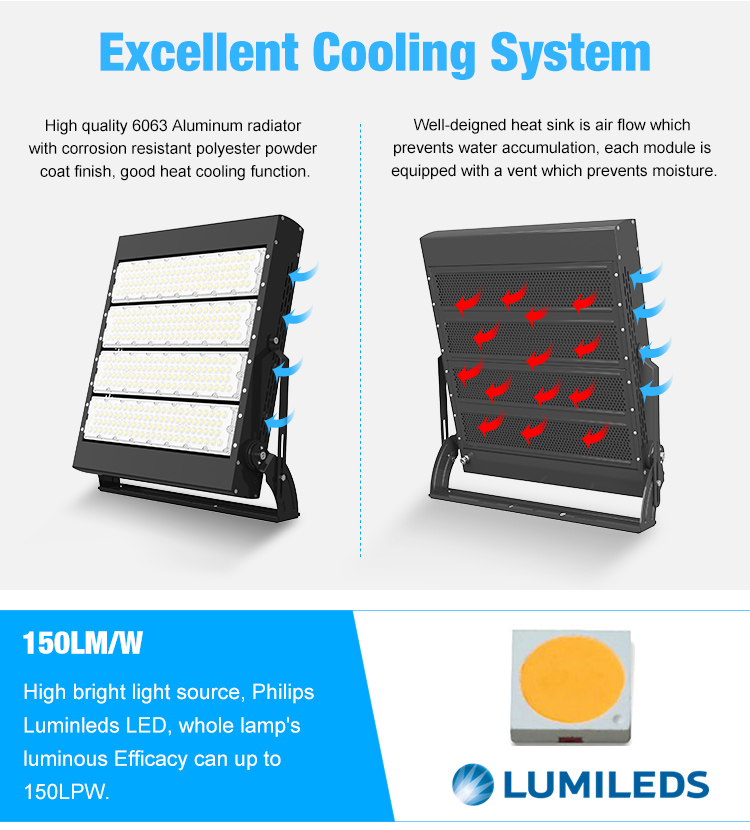

* High strength aluminium structure with excellent thermal management design;

* Corrosion resistant polyester powder coat finish;

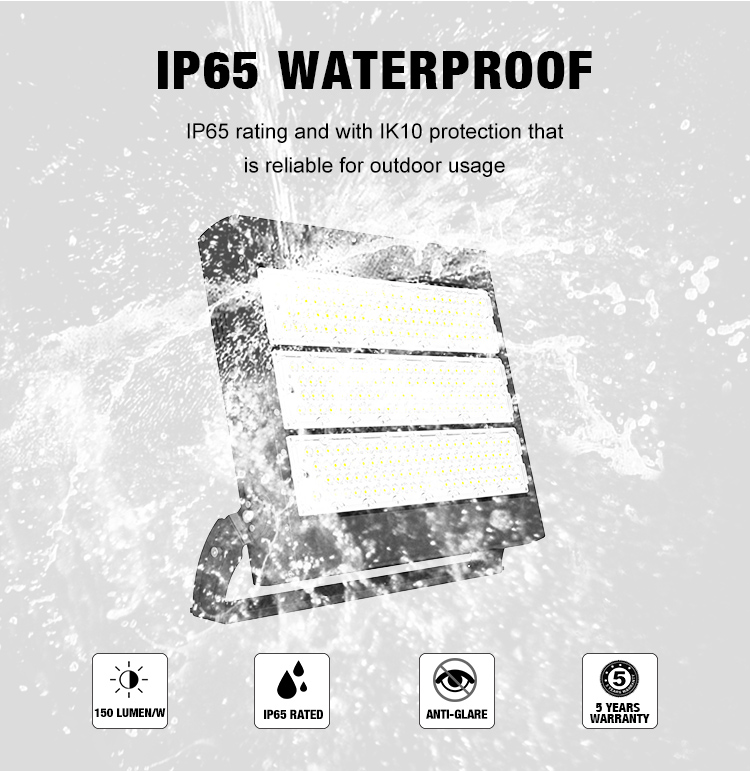

* IP65 rating against dust,waterproof,weather for outdoor usage;

* Easy installation and maintenance,longer lifetime with high lumen maintenance;

* Energy savings, no UV and IR radiations, emits low heat;

* Ideal replacement to traditional metal halide lamp of 300W to 4000W;

* Intelligent dimming system:0-10V, DMX and DALI dimming modes are available;

* ETL/cETL/FCC/CE/RoHS/SAA/C-TICK approval


Product Specification:

Item NO.

RMS-F-L2-

100W

RMS-F-L2

-200W

RMS-F-L2-

300W

RMS-F-L2-

400W

RMS-F-L2-

500W

RMS-F-L2-

600W

RMS-F-L5

-700W

RMS-F-L5

-800W

RMS-F-L5-

1000W

RMS-F-L5-

1200W

Watt100W200W300W400W500W600W700W800W1000W1200W
Total Lumens15000LM30000LM45000LM60000LM75000LM
90000LM105000LM120000LM150000LM180000LM

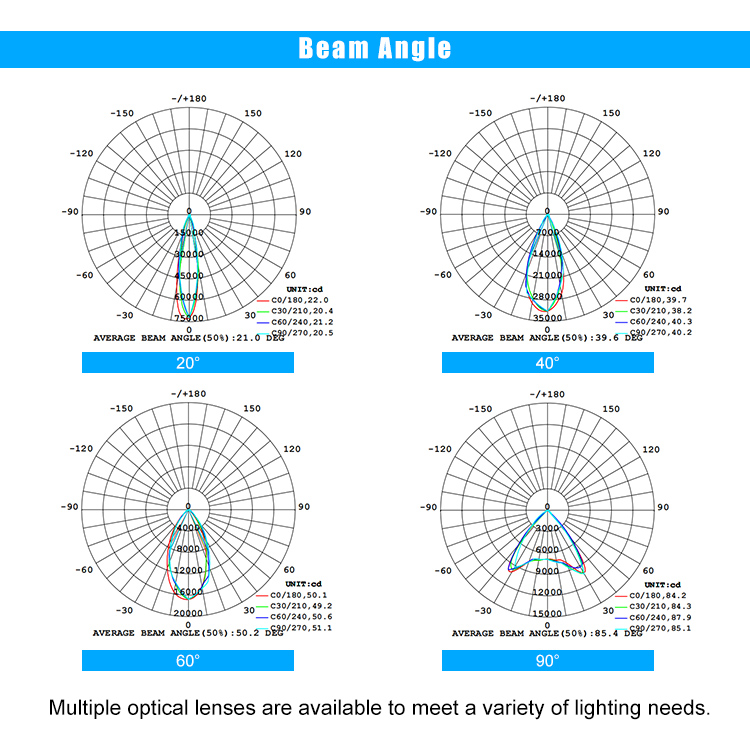

Beam Angle20°/40°/60°/76°/90°/90°x135°
CCT2700K-6500K
Input Voltage100-277Vac/200-480Vac, 50-60Hz
LED BrandPhilips Luminleds
CRI>70
Power Factor>0.9
Operating Temperature-35℃~55℃
IP RatingIP66
Test StandardIES/LM79/LM80
Safety CertificationETL / cETL / FCC / CE / RoHS / SAA / C-TICK /
Warranty Time5  Years

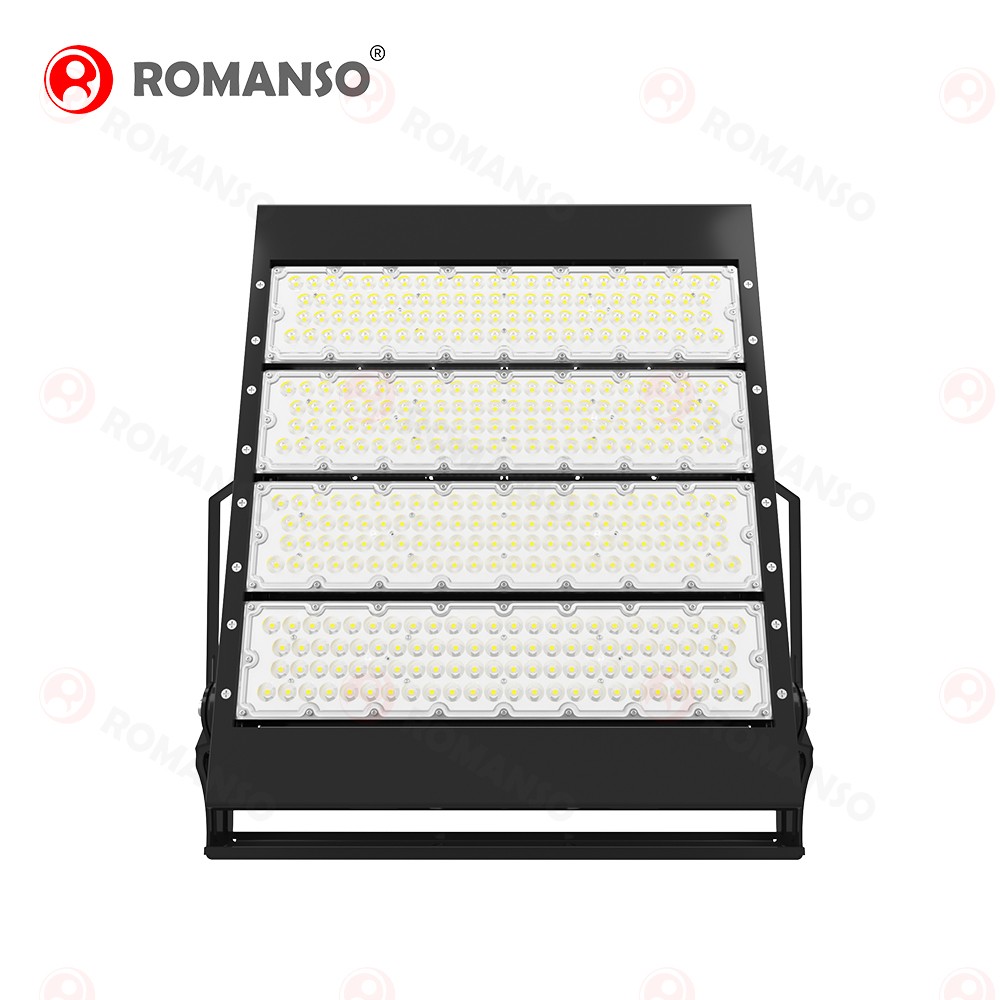

Product Display:



Product Details:

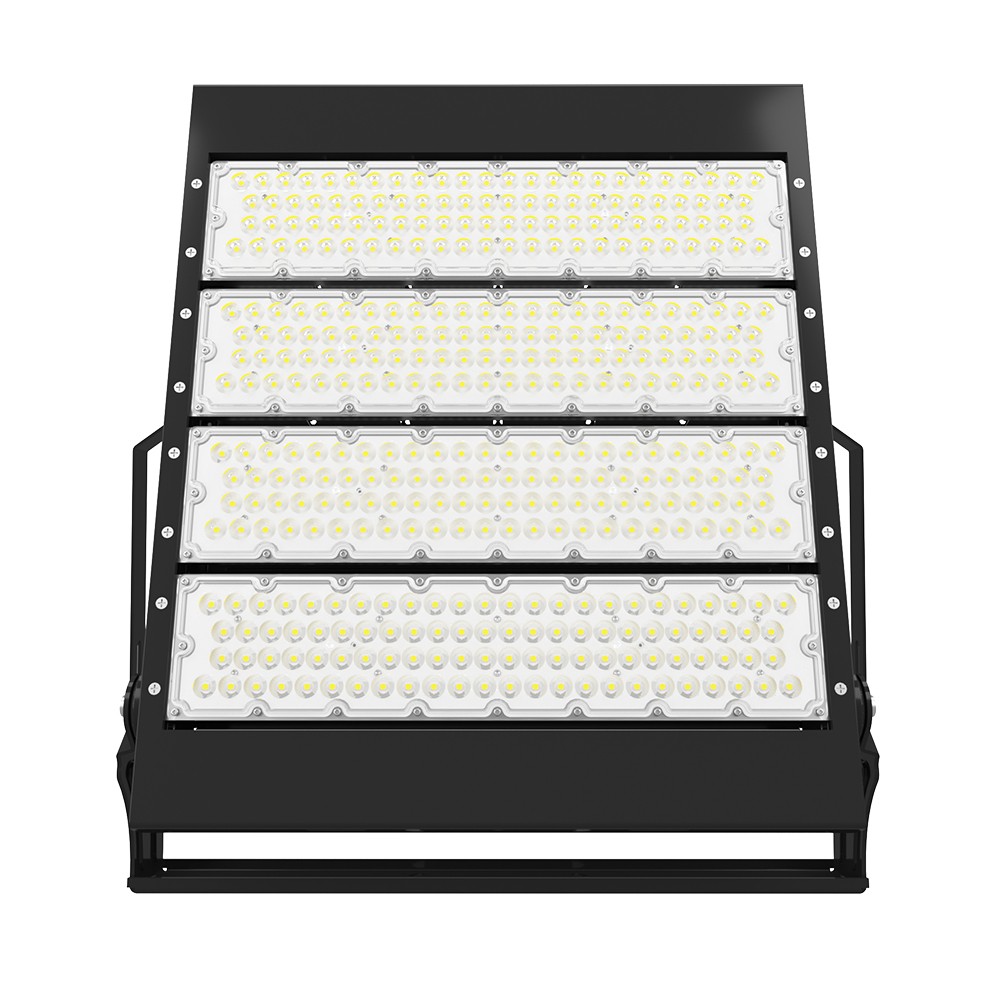

LED Stadium light

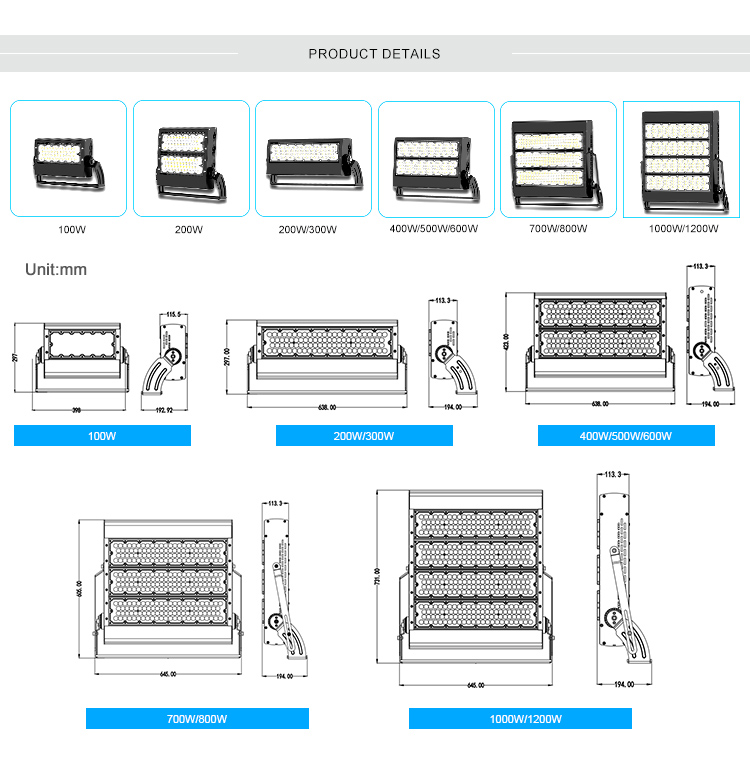

Product Dimensions:

LED Stadium light

LED Stadium light

LED Stadium light

LED Stadium light

LED Stadium light

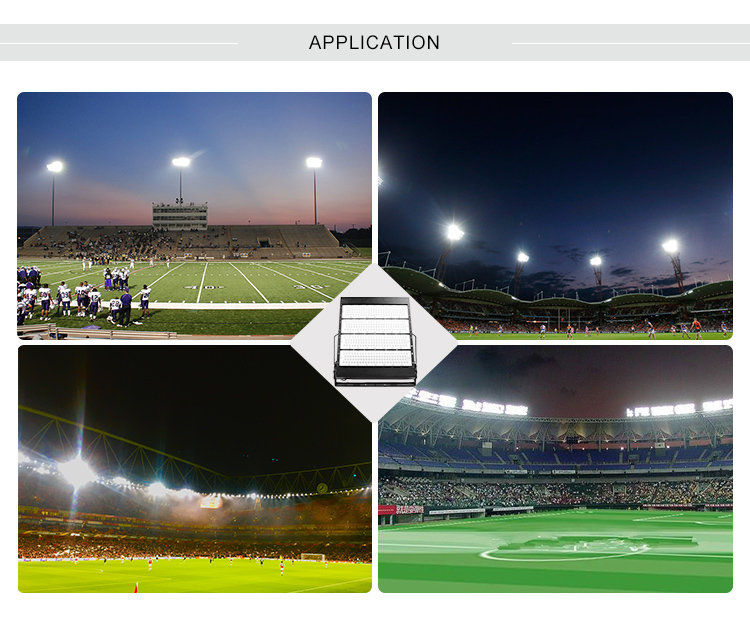

Application:

Applied in large sports field lighting, football, basketball, golf and tennis court, racetrack, badminton, roads, high-rise buildings, tower lights, etc.

Can also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environment.
