ROMANSO L2309 series is a powerful stadium light designed with Remote Power System.This Remote Power System not only makes the fixture easy to install, greatly improves the flexibility of on-site installation, but also simplifies the driver maintenance operation steps to the greatest extent, eliminating the cost to take the bucket or crane basket equipment for maintenance. Precision engineered optics provide excellent high output and high efficiency, making them ideal solutions for municipal, school and semi-professional outdoor sports lighting
Specification Features
Construction
Sealed die-casting profile for outdoor applications
Low profile, compact design minimizes wind load requirements.
Housing is completely sealed against moisture and environmental contaminants (IP65).
Optics

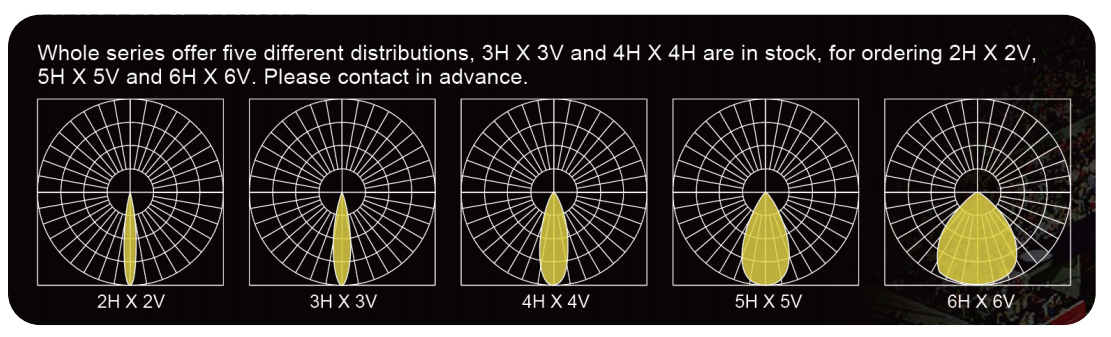

Available in NEMA 2Hx2V, 3Hx3V, 4Hx4V,5Hx5V,6Hx6V distributions.
Light engines are available in standard 4000 K, 5000K and 5700 K (70/80/90 CRI) configurations.
Scalable Lumen Packages from 70,000 to 165,000 Lumens.
Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical
Ultra-wide input voltage: 200-480VAC or 120-277V or 347-480V.
Standard with 0-10V dimming driver(s)
Built in surge suppression with max 40KV.
THD: ≤ 20%
Power Factor: ≥ 90%
Ambient Temperature
Ambient operating temperature -40℃ to 50℃ (-40℉ to 122℉).
Lifespan
Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Certifications
UL cUL wet location listed.
Note
Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25℃(±5℃ ) specifications subject to change without notice.

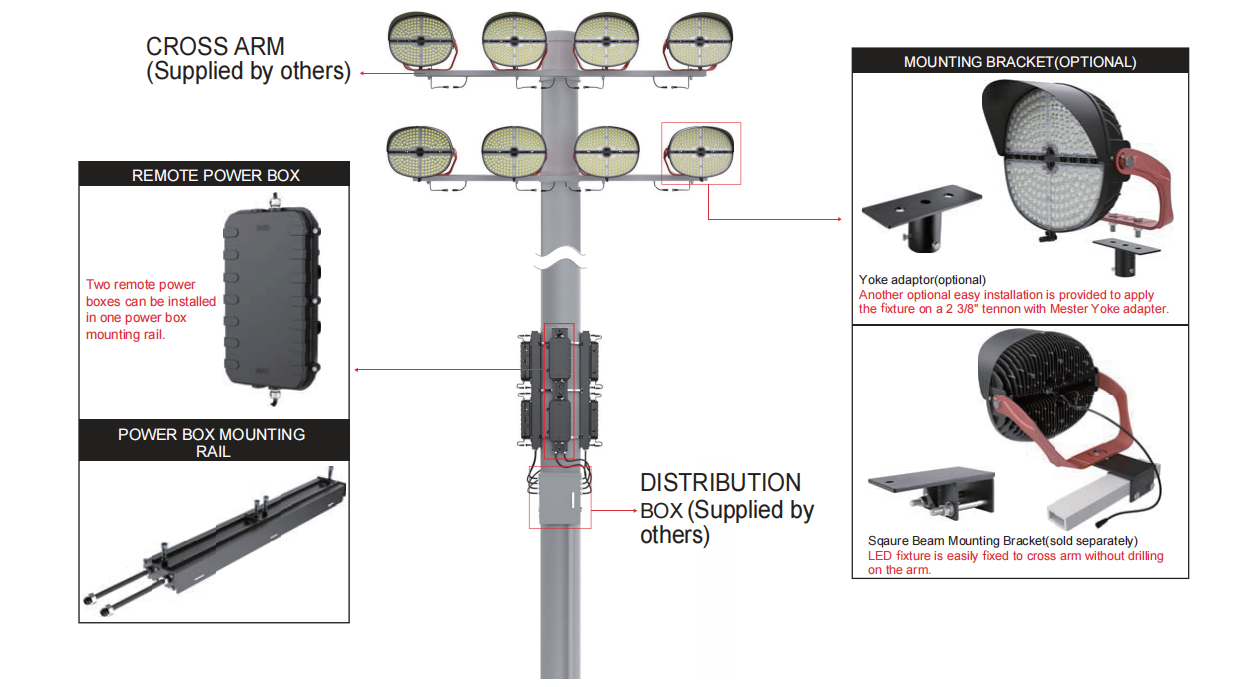

Remote Power Box(Optional) 1
Romanso supports remote installation of the drive power - simple installation, access and maintenance of the equipment can be met by placing the drive power of the fixture at the bottom of the pole by using a true and extension power cord (sold separately).

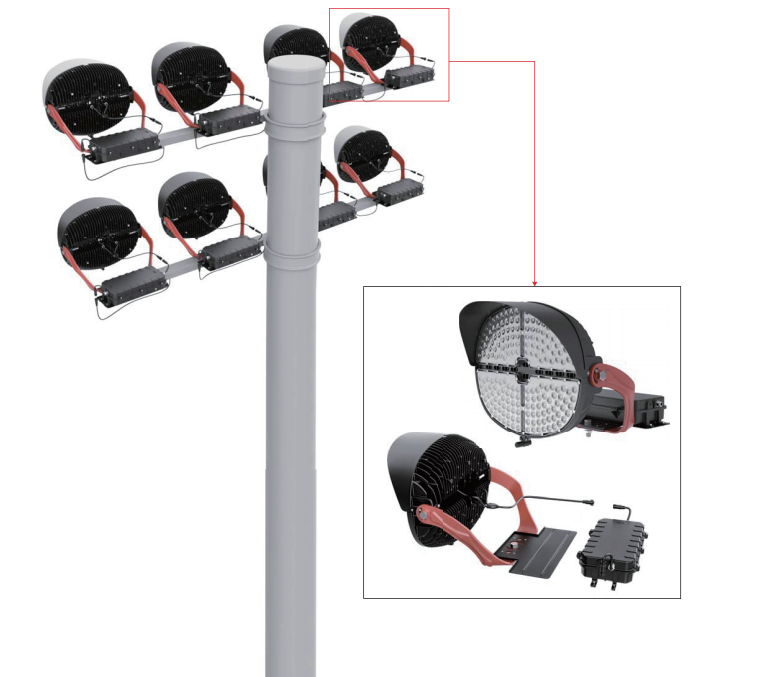

Remote Power Box(Optional) 2
Romanso supports separate power can be installed on the top of the light pole as a whole unit, which is simple and fast way, without additional abor costs to install the driver. It is also beneficial to reduce the power consumption of fixtures caused by remote wiring, save energy and improve efficiency.
RGB Color Sports Lighting(optional)
ROMANSO sports light adds RGB color options to create exciting dynamic scenes or other exciting custom effects. Enhance the fan experience, increase audience participation, and increase their response during half-time performances or player introductions increasing overall entertainment. MESTER sports lighting can be used not only for various sports venues, but also for charity events, sponsorship events, and ideal for Floodlighting, Spotlighting, Wall Washing and Grazing.

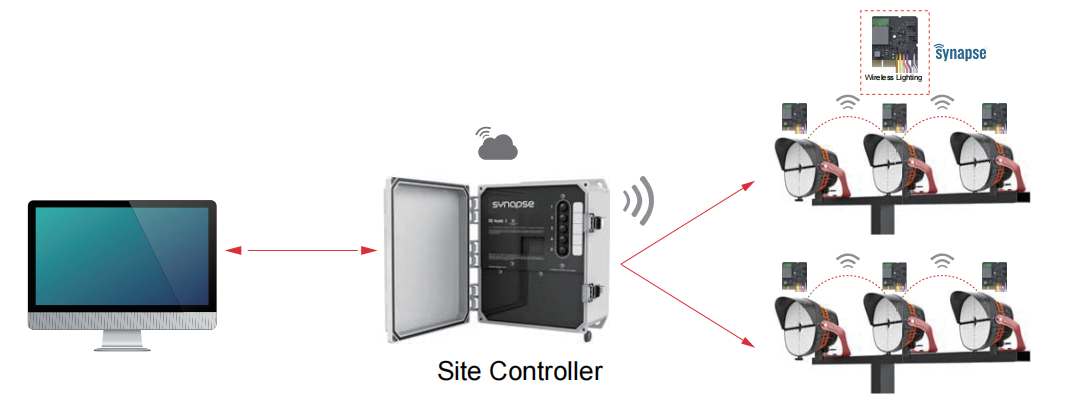

Integrated Controls
The fixture is compatible with Synapse™ wireless control system, including RGB sports lighting. It offers a smart, stable and imaginative lighting control solution to your sports facility.
Photometrics

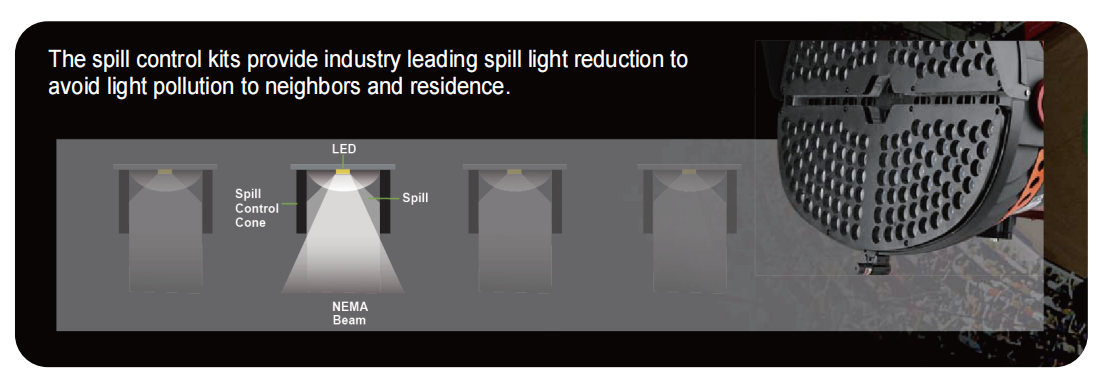

Stall Control
According to the needs of different application facilities, we have made the following classification and use recommendations!
Romanso by providing superior high output and high efficiency,sports light series is the ideal solution for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting.
This LED stadium light is suitable for large stadiums, all kinds of large stadiums, ships, squares, docks, airports, commercial places, overpasses, outdoor advertising, landmarks and other large panoramic lighting
We will continuely launch new products to the market, please stay tuned for our news. If you want to know more, please feel free to contact us romanso@romanso.com
