16W 22W LED Corn Light

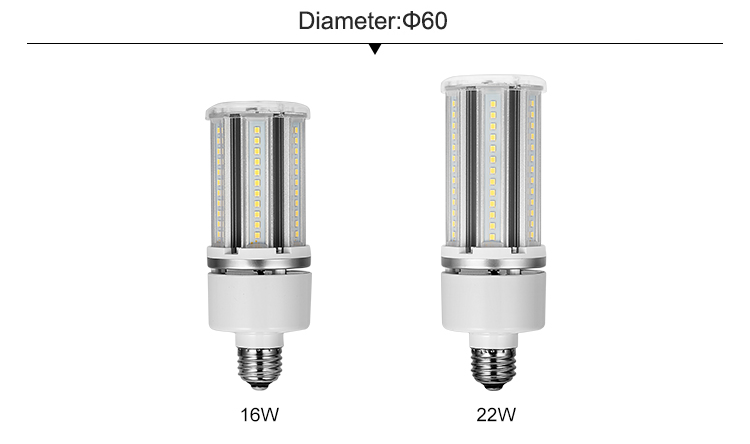

16W to 120W led corn bulb is the perfect replacement of traditional HID/MHL/HPS lamp. There is smaller size 16W/22W with diameter 60mm, suitable for more fixtures. The whole series can be used in totally enclosed fixtures. Internal driver without Fan design provide longer lifespan. The driver passed 6000V surge test. There is more 15% LED quantities than regular products in market, offer 130lm/w. This series add 20-25% LED plates provide improve luminance uniformity. This bulb is unique dual heat dissipation design with DLC UL LM80 certification, provide 5 years warranty.

Product Description

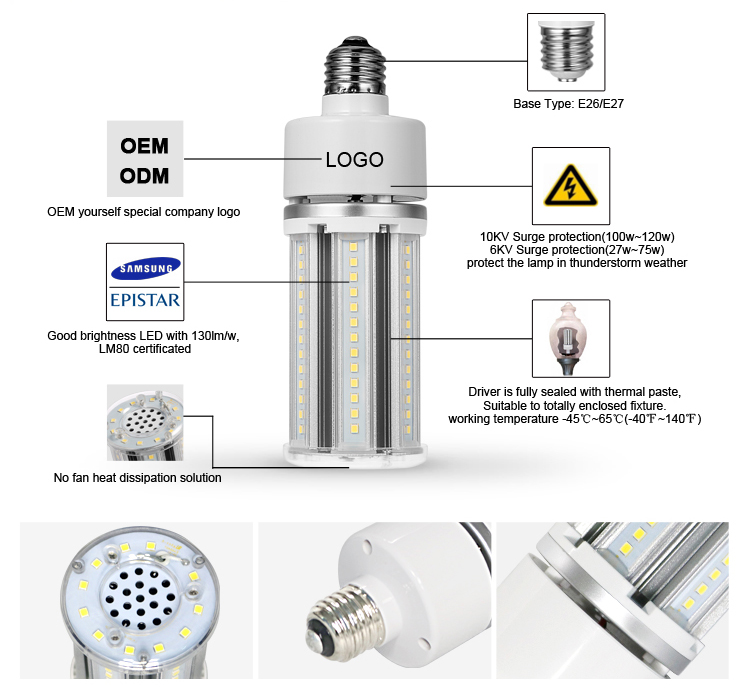

Product Feature:

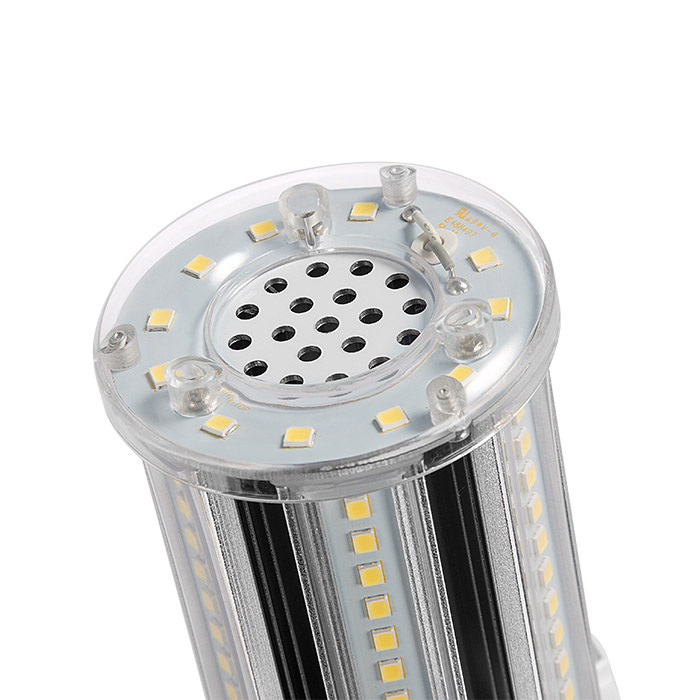

● Dual heat dissipation design of the lamp body. Isolated aluminum heat sink and driver, hollow heat sink increase airflow.

● Increase LED plates to 10/12pcs. No lighting shadow, more luminance uniformity.

● Combined heat sink reserve gaps for more ventilation area.

● Suitable to totally enclosed fixture.

● Passed 6000V high voltage surge test, protect the lamp better.

● Good brightness LED with 130lm/w, LM80 certificated.

● More 15% LED compared with general corn bulb in market.

● Fanless design with 5 years warranty.

● The circle ring on the lamp can be customized the color as request.

● UL/cUL/DLC/CE/ROHS/FCC/LM80 certification.

● IES files available.


Product Specification:

Item NO.RMS-K15-16WRMS-K15-22W
Watt16W22W
Total Lumens2080LM2860LM
Beam Angle360°
CCT3000K-6500K
Input VoltageAC100-277V, 50-60Hz
CRI>70
Power Factor>0.9
Operating Temperature-35℃~55℃
IP RatingIP64
Test StandardIES/LM79/LM80
Safety CertificationUL /DLC/ CE / RoHS / FCC
Warranty Time5  Years

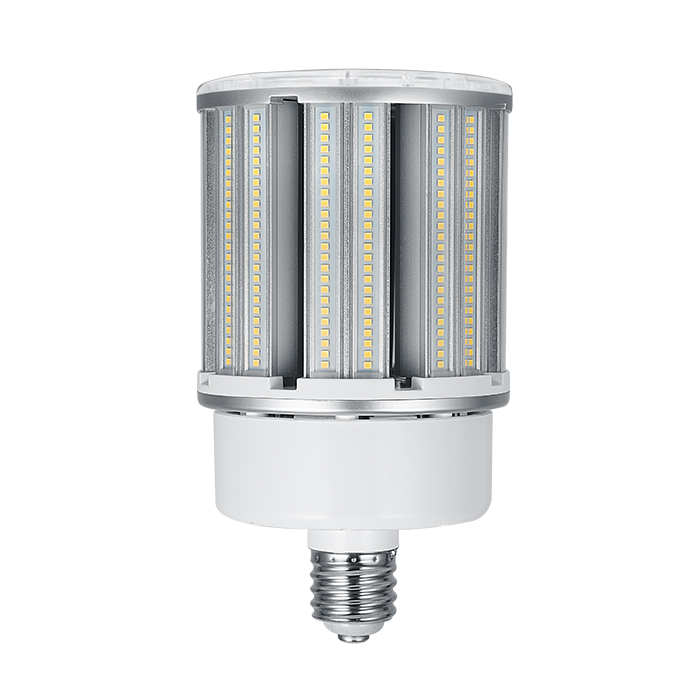

Product Display:

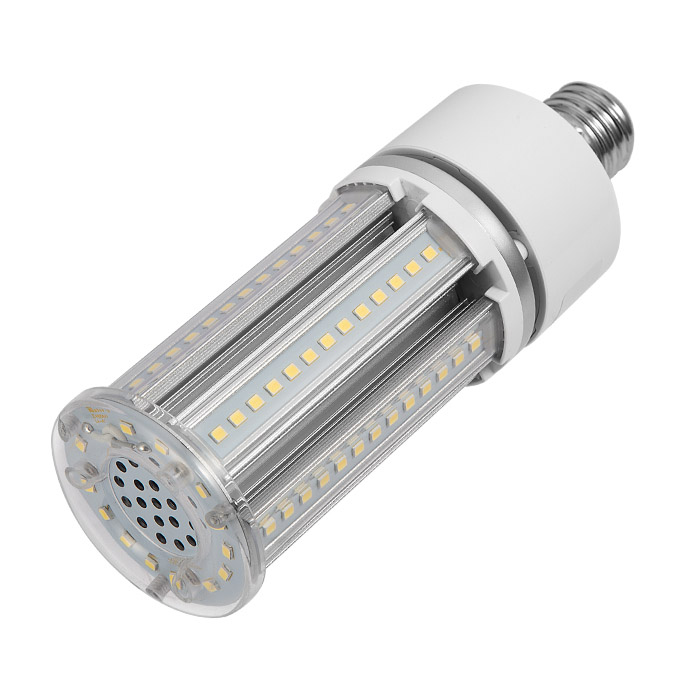

LED Corn Light

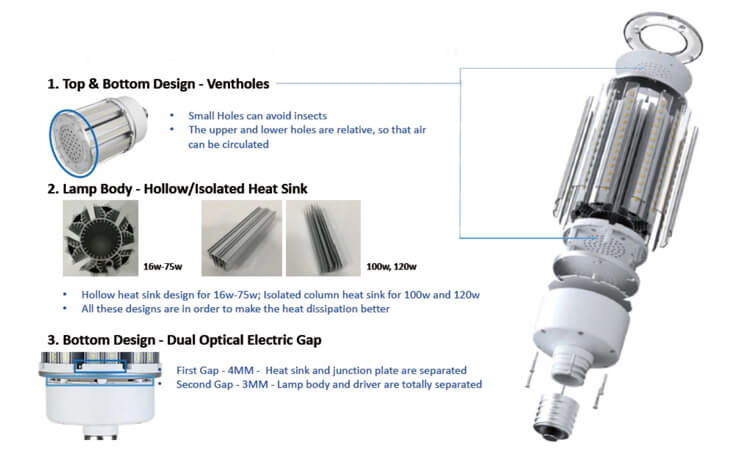

Product Details:

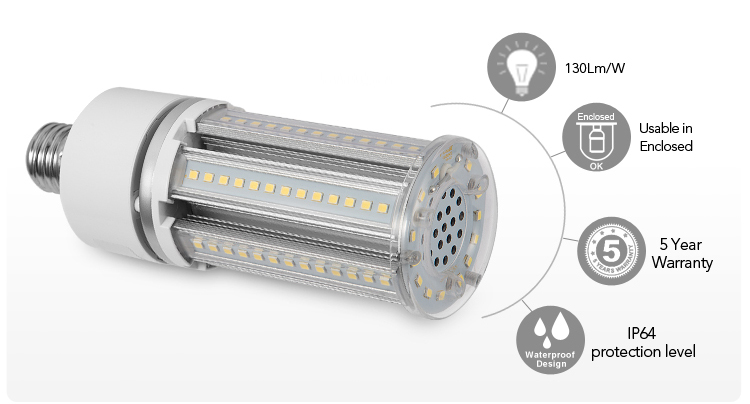

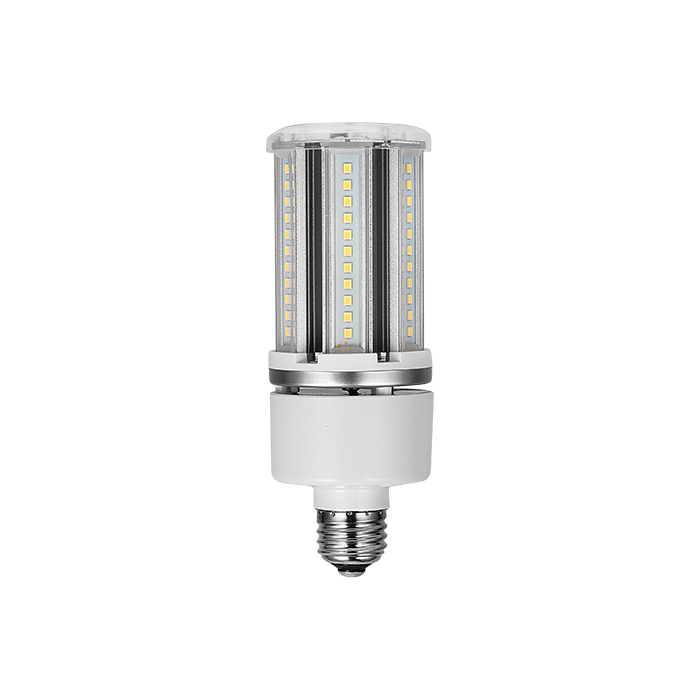

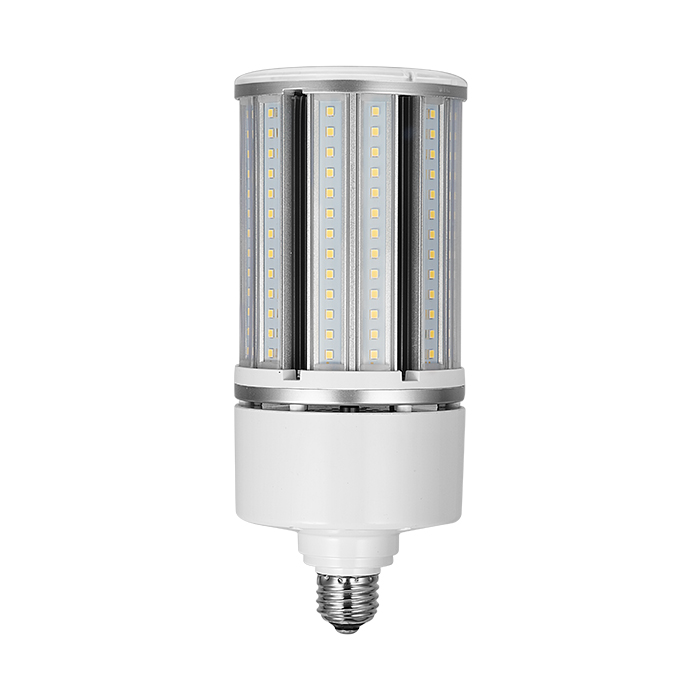

LED Corn Light

LED Corn Light


LED Corn Light

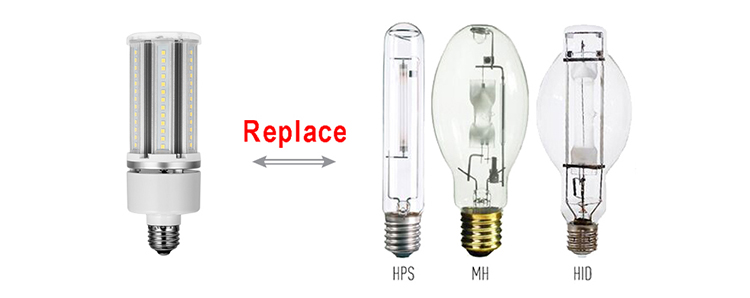

Replace:

LED Corn Light


Application:

Widely used in retrofitting HPS/MH/HID/CFL as street light, garden light, industrial lightetc.

Application locations are Warehouses, Indoor and public places, and other industrial lighting purposes.

Fit for fixtures as floodlight, canopy light, highbay light, acorn, cobra head, shoebox, wallpack, post top etc.
