LED retrofit design replaces MH and HPS lamps up to 400-500W. This unique design features both down and side mounted LEDs delivering a wide and uniform light distribution. Suitable for fully enclosed high bay, low bay, canopy and other area fixtures. Special separated driver and led heat sink design for better heat dissipation and good to extend the lifetime of
whole lamp.
Product Description

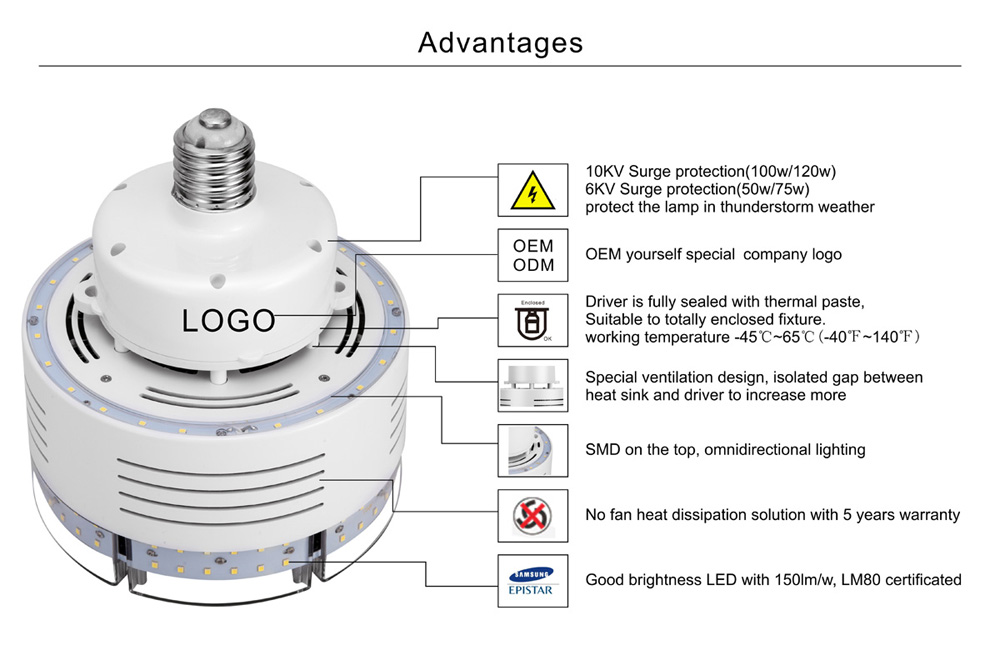

Product Feature:
●Special ventilation design, isolated gap between heat sink and driver to increase more cooling areas for better heat dissipation.
●Both down and side mounted LEDs delivering a wide and uniform light distribution.
●Suitable for totally enclosed fixtures.
●High effect lumen: 140~150lm/W.
●Driver 6000V surge protection.
●UL/cUL/DLC/CE/ROHS/FCC/LM80 certification.
●IES files, ISTMT, LM79, LM80 test reports are available.
●Fanless design with 5 years warranty.
Product Specification:
| Item NO. | RMS-K9-II-100W | RMS-K9-II-120W |
| Watt | 100W | 120W |
| Total Lumens | 15000LM | 18000LM |
| Beam Angle | 120° | |
| CCT | 3000K-6500K | |
| Input Voltage | AC100-277V, 50-60Hz | |
| CRI | >70 | |
| Power Factor | >0.9 | |
| Operating Temperature | -35℃~55℃ | |
| IP Rating | IP54 | |
| Test Standard | IES/LM79/LM80 | |
| Safety Certification | UL /DLC/ CE / RoHS / FCC | |
| Warranty Time | 5 Years | |

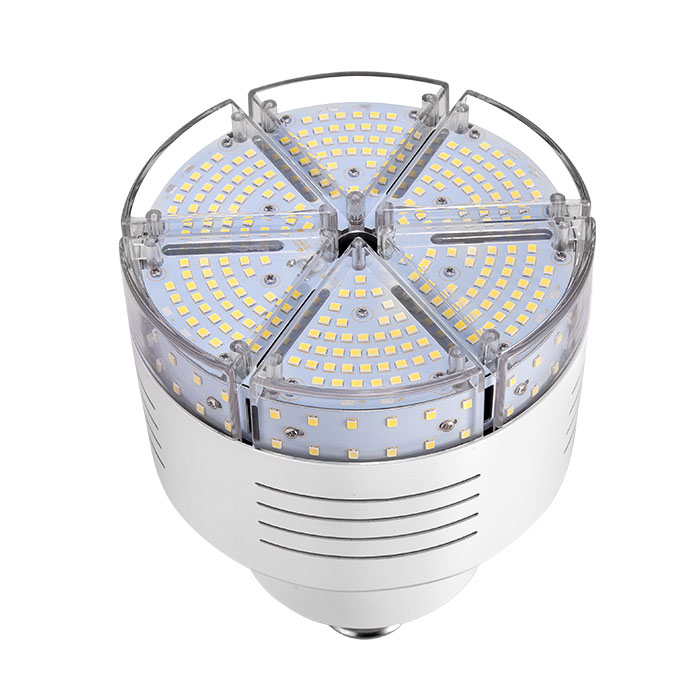

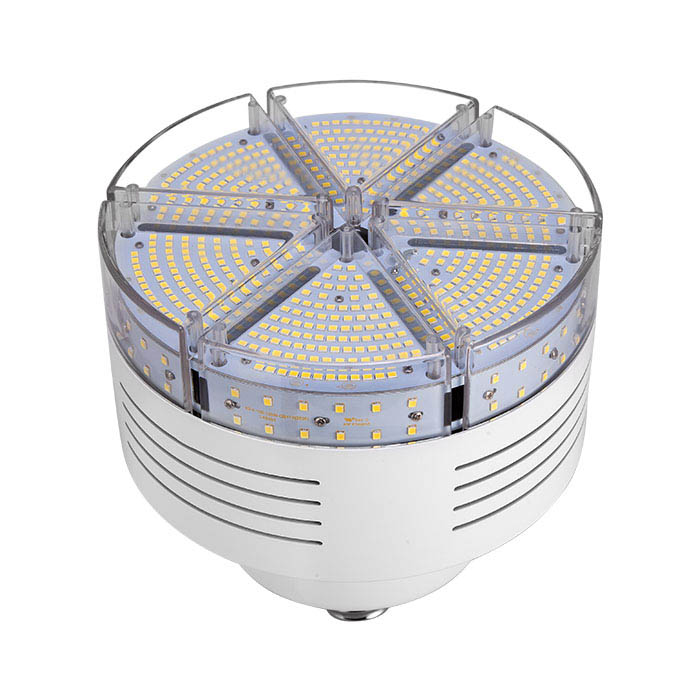

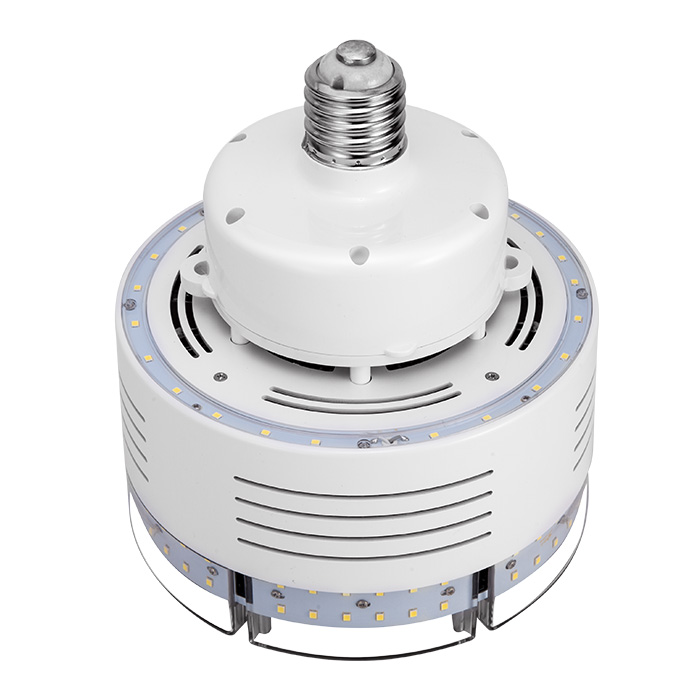

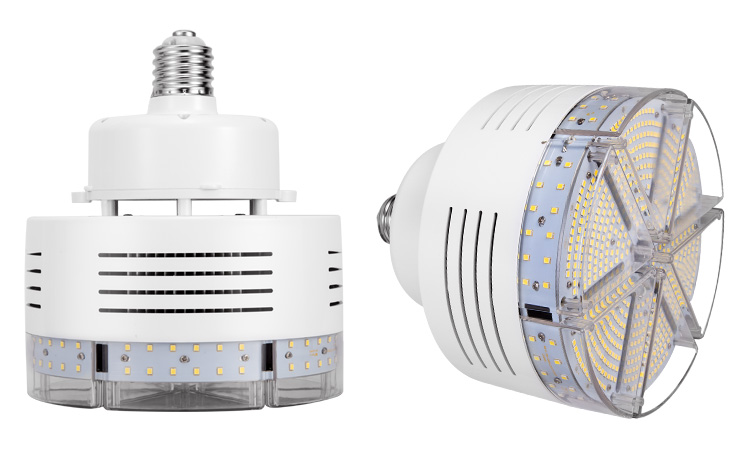

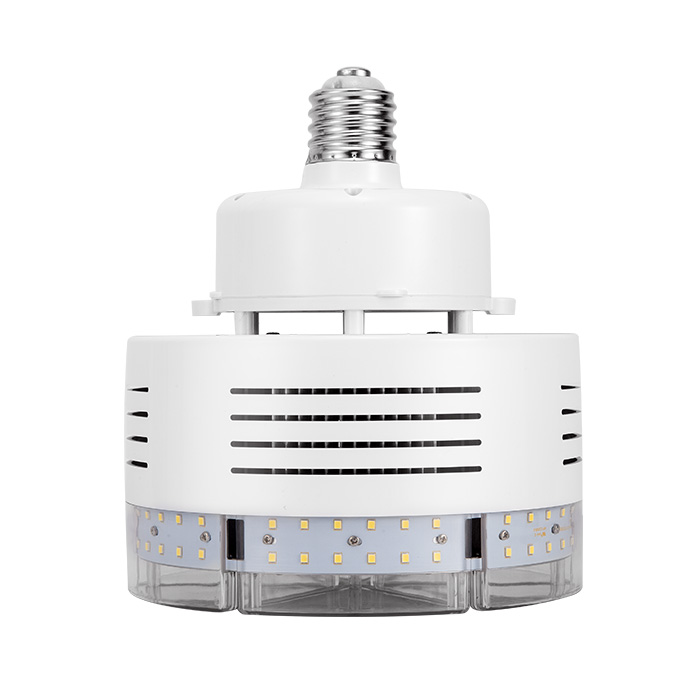

Product Display:
Product Details:

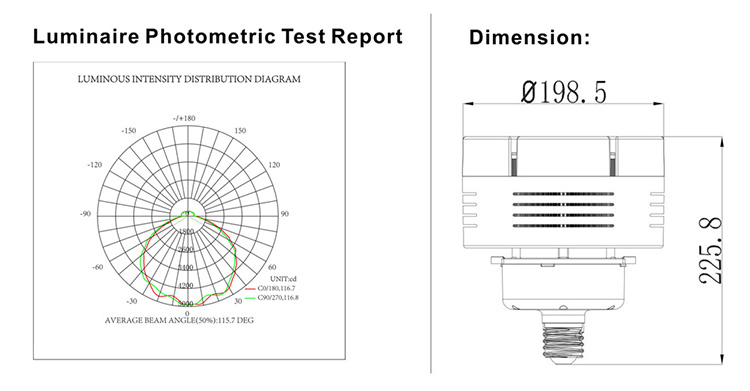

Dimension & Light Distribution Curve [Unit:cd]:

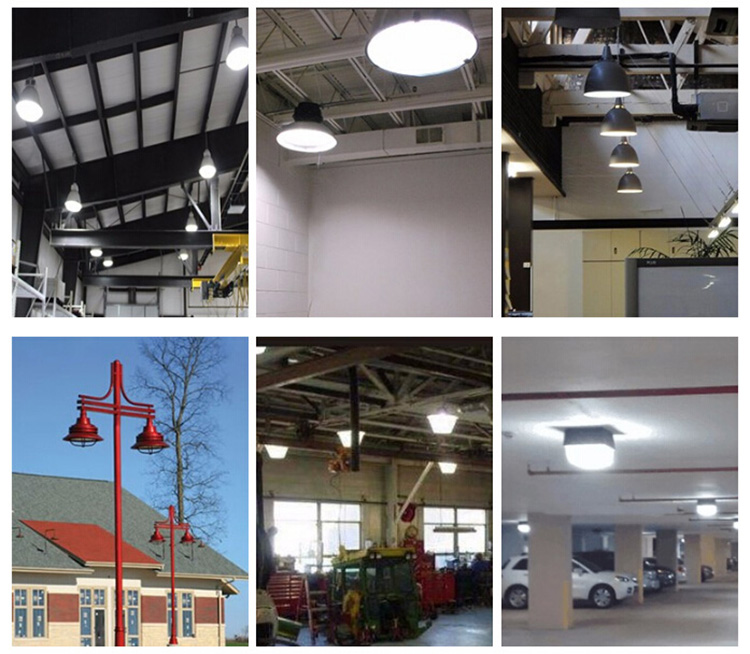

Applications:
Fit for fixtures as Retrofit replacement for conventional HID/MH/HPS lamps: Canopy Light, High bay Fixture,etc.Application locations are Warehouses, Indoor and public places, and other industrial lighting purposes.
