75W/100W perfect replacement lamp, widely used for shoebox, flood light, street light these totally enclosed fixtures. Internal driver without Fan design with 5 years warranty. E39/EX39/E40 base, the lighting angle is adjustable 180°/270°according to the applications. The lamp is high brightness with 150lm/w, LM80 standard LED. The whole series are UL DLC certificated. IES files are available.
Product Description
Product Feature:
●75W/100W available.

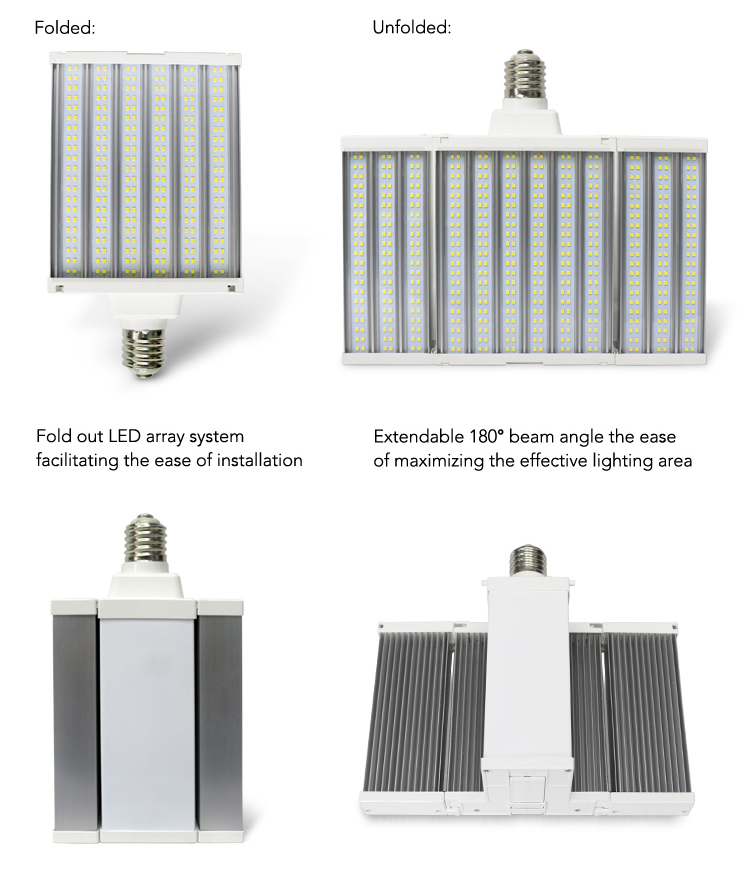

●Adjustable lighting angle, 180°/ 270°can be adjusted by customer.
●E39/EX39/E40 base.
●Fins LED heat sink design, driver isolated to LED.
●High brightness 2835 LED provide 150lm/w.
●Suitable to totally enclosed fixture.
●UL/cUL/DLC/CE/ROHS/FCC/LM80 certification.
●IES files, ISTMT, LM79, LM80 test reports are available.
●Fanless design with 5 years warranty.
Product Specification:
| Item NO. | RMS-K7-II-75W | RMS-K7-II-100W |
| Watt | 75W | 100W |
| Total Lumens | 11000LM | 15000LM |
| Beam Angle | 180°/270° | |
| CCT | 3000K-6500K | |
| Input Voltage | AC100-277V, 50-60Hz | |
| CRI | >70 | |
| Power Factor | >0.9 | |
| Operating Temperature | -35℃~55℃ | |
| IP Rating | IP64 | |
| Test Standard | IES/LM79/LM80 | |
| Safety Certification | UL /DLC/ CE / RoHS / FCC | |
| Warranty Time | 5 Years | |

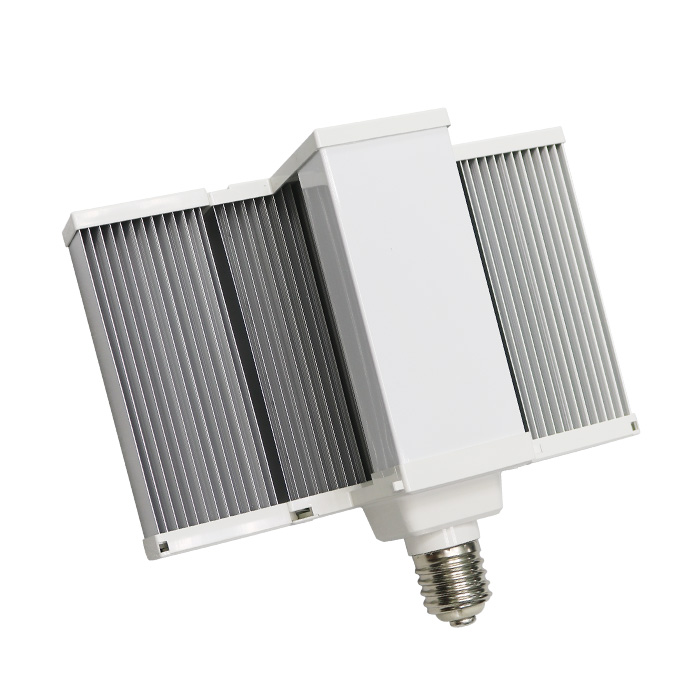

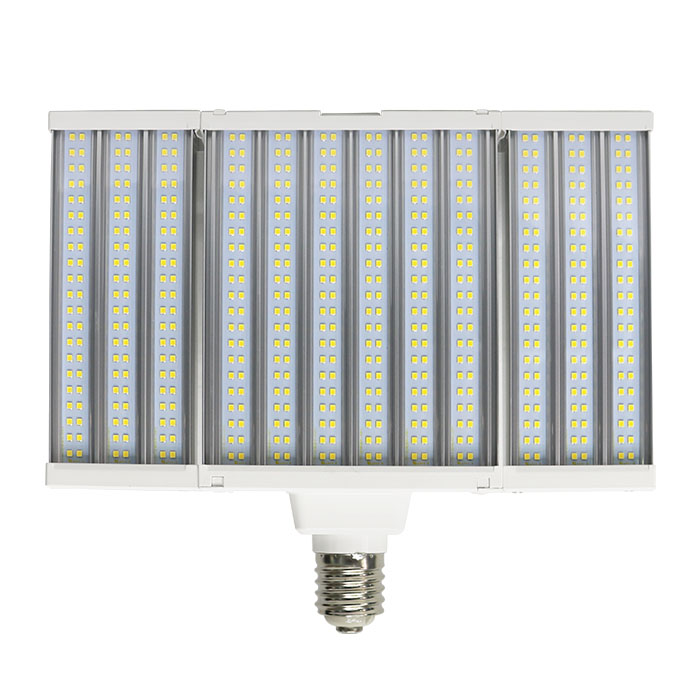

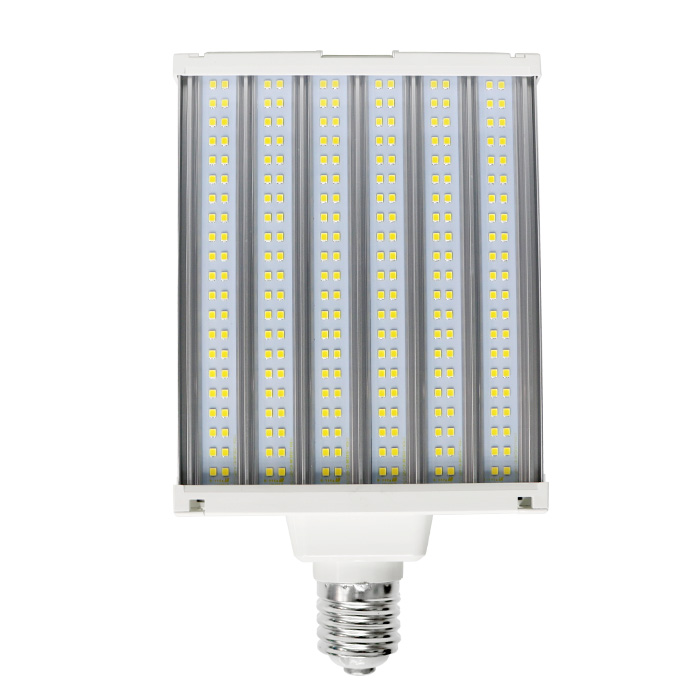

Product Display:

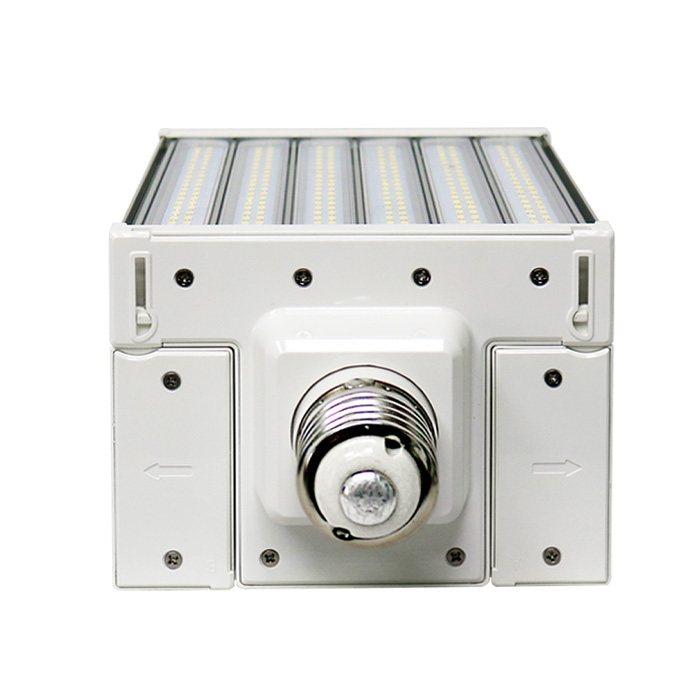

Product Details:
Product Dimension:
Application:
Retrofit replacement for conventional HID/MH/HPS lamps, Wall pack, Canopy light, Flood Light, Street Light, Shoebox Light etc.
